Accelerator Type 4 Grass Catcher Installation Video
Step by step instructions for installing the Accelerator Type 4 grass catcher.
Watch VideoTools Needed
- Safety glasses
- gloves
- ½” ratchet drive
- ½” open end wrench
- drill with sharp 5 / 16” bit
- hammer
- center punch
- two C-clamps
- pen
Each catcher comes with mounting instructions specific to that catcher. All catchers have a general information sheet that provides catcher care direction and basic instructions. If your catcher comes with a bracket in the box, then you will also receive specific bracket installation instructions.
It is your responsibility to read the warnings below and follow the provided instructions.
-
Step 1:
If necessary, remove the deflector shield assembly to provide room to mount the catcher. Place the adaptor on the deck, and align it so that it fits snugly
-
Step 2:
Clamp the adaptor in place and drill mounting holes if necessary
-
Step 3:

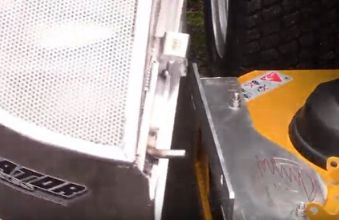

Some adaptors may have holes pre-drilled. Insert the provided hardware and tighten it. Insert the catcher pin into the hole at the front of the adaptor, then slowly lower the back of the catcher until the hook seats onto the adaptor lip
Operator's Manual
Operator's Manual
Please read the operator's manual carefully before installing your catcher.
